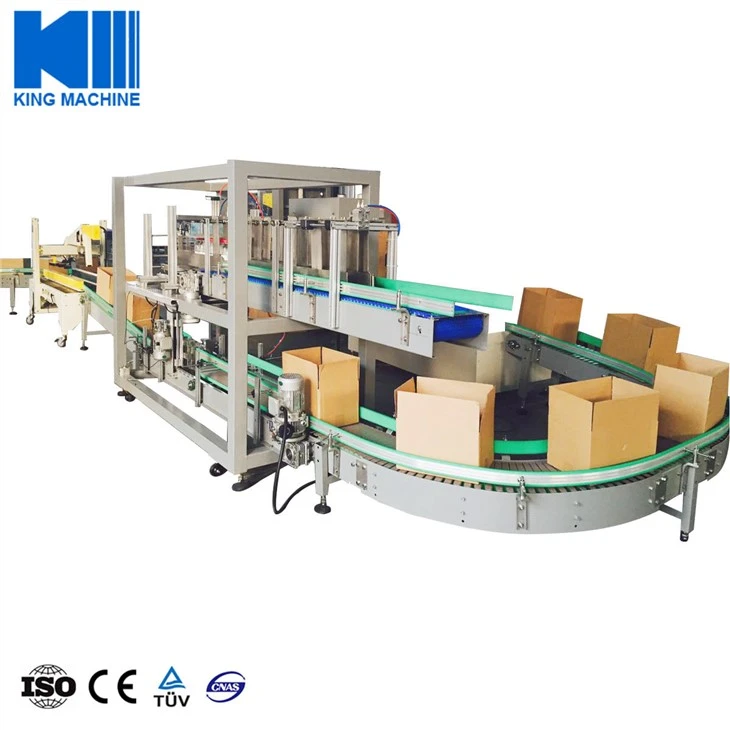

Peralatan Pakej Kotak Karton Automatik

Mesin ini dibangunkan terutamanya untuk air mineral, wain minuman, bir, produk dan pembungkusan gabungan botol ubat infusi tidak lama lagi, dengan fungsi yang stabil, dan artikel yang dibungkus dengan ketat dan teratur. Ia boleh dikendalikan sebagai mesin penolak tunggal apabila kelajuan tinggi dituntut.

Hantar pertanyaan

pengenalan produk

Peralatan Pakej Kotak Karton Automatik

Penerangan Produk

Pengecutan Bukan Dulang Automatik-Mesin Pembungkus Pembalut

Automatic Carton Box Package Equipment for Sale

The machine is developed especially for mineral water, beverage wine, beer, product and soon infusion medicine bottle combination packaging, with stable function, and the packed articles tight and orderly. It can be handled as a single pushing machine when high speed demanded.

Parameter Teknikal
Dimensi peralatan	l5050W3300H2100mm
The largest dimension of the wrappage	l600W400H350mm
Material of shrink film	PE
Thickness of shrink film	0.03-0.1 Smm
Suhu tertinggi relau pengecutan haba	160-260degree
The maximum production per minute	0-12 packages/min
Power	20KW
Kuasa Sebenar	15 Kw/hour
Berat badan	1.2T
Pressure of air	0.6-0.8 Mpa

Mesin Pembungkus Filem Pengecutan PE Automatik jenis linear

Automatic Carton Box Package Equipment for Sale

kuasa	28KW	PE Film	ketebalan:0.03-0.10mm lebar:<>
Penggunaan udara	25m3/H, >0.6Mpa	Weight	1.5 tan
Speed	20-25 beg/minit	Dimensi	L12000W1100H2100mm
Bottle Diameter	Diameter 60-90 mm ketinggian<>	Saiz maksimum balutan	L2400W650H450mm

Mesin Pembungkus Filem Separa Automatik PE

Automatic Carton Box Package Equipment for Sale

parameter teknikal
Model	BZJ -5038J
Max. packing dimension	L450W270H330mm
Min. packing dimension	L250W60H140mm
kuasa	220-240V, 50-60Hz, 1.6kw
Packing speed	8 pcs/min
beban papan tolak	20kg
Film thickness	0.03 - 0.25mm
Dimension	L1020W830H1980mm
Machine Weight	170kgs
Film Thickness	0.03-0.25mm

Mesin Pembungkusan Karton Jenis Carboard

Automatic Carton Box Package Equipment for Sale

It is a drop-in compatibility, applicable to different specifications carton packing machine,the bottle effectively stand in line to the top of the carton, in accordance with the packing requirements, automatic position device to ensure that the bottle is packed by product fall into the carton, this machine adopts PLC touch display control, alarm device. no bottle no packing security.

parameter teknikal
Packing type	Botol Bulat, botol kaca. Botol PET, tin
Container volume	250ml-2000ml
Skop ketinggian botol	100-350(mm)
Skop diameter botol	57-100 or large(mm)
Kapasiti	15 karton/min
Machine dimension	L6285W2582H2115mm
Dimensi kadbod lipat	550<><>
Hot melt adhesive solidify time	1.5-2 S
Tekanan udara bekerja	0 4-0.7Mpa
Kuasa	6kw
Berat badan	4000kg

Mesin Pengedap-Pembungkusan-Kadbod
Automatic Carton Box Package Equipment for Sale

carton forming and bottom sealing packing machine which control by PLC and operate from HIMI system. Machine can do 12 carton forming and tapping in every min. very efficiency and convenient. Carton board can be loaded without stopping the machine. Packing line will not stop during the continuous packing flow. Carton packing size can be adjust manually. Easy to operate and maintain.

Kelajuan pengeluaran	12-15ctns/min
Kuantiti simpanan kadbod	100pcs (1000mm)
Saiz kadbod	L250-450W150-400H100-400mm
Bekalan kuasa	110/220V, 50/60Hz, 1 Phase
Kuasa	2.44kw
Pita berkenaan	48/60/75mm (Pilih satu jenis)
Air compressing	6kg/cm3
Mesin membentuk kadbod automatik	L2000W1900H1450mm
mesin pembungkusan karton	L1900W1000H3500(mm)
pengedap karton	L1170W900H1350
